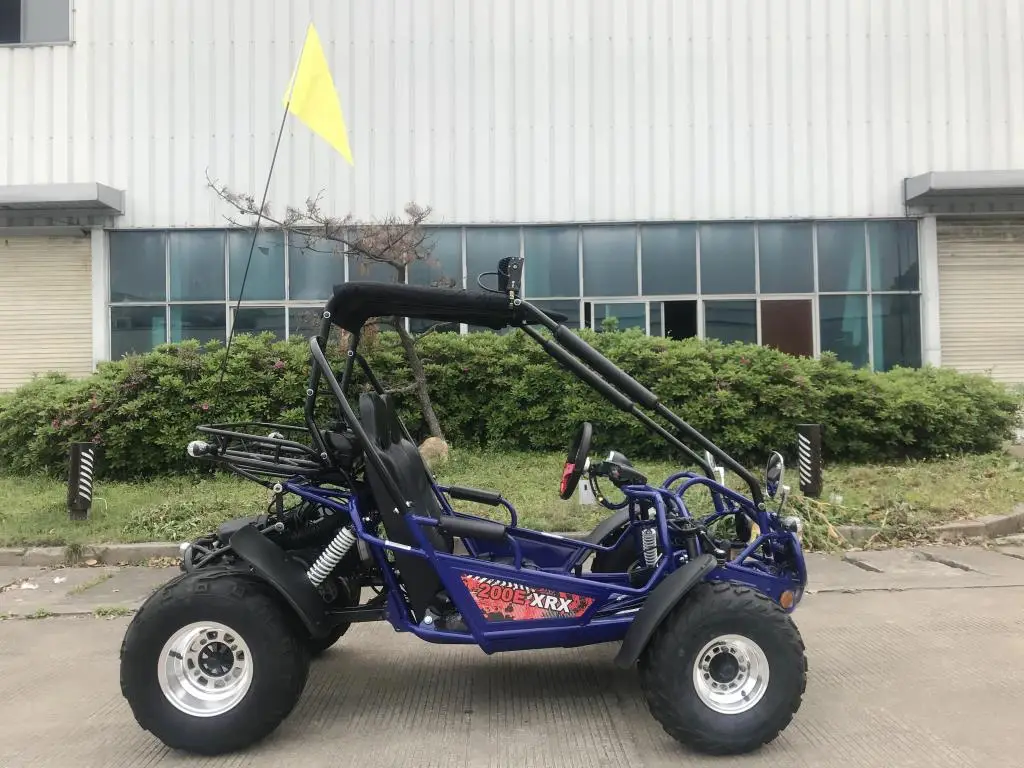

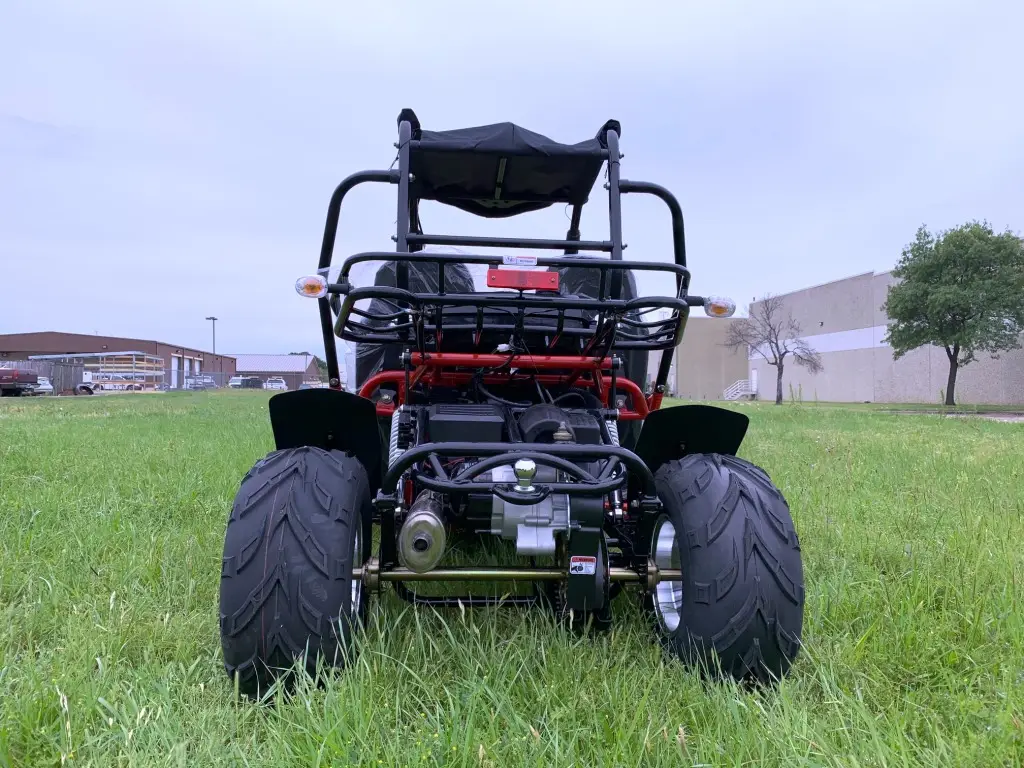

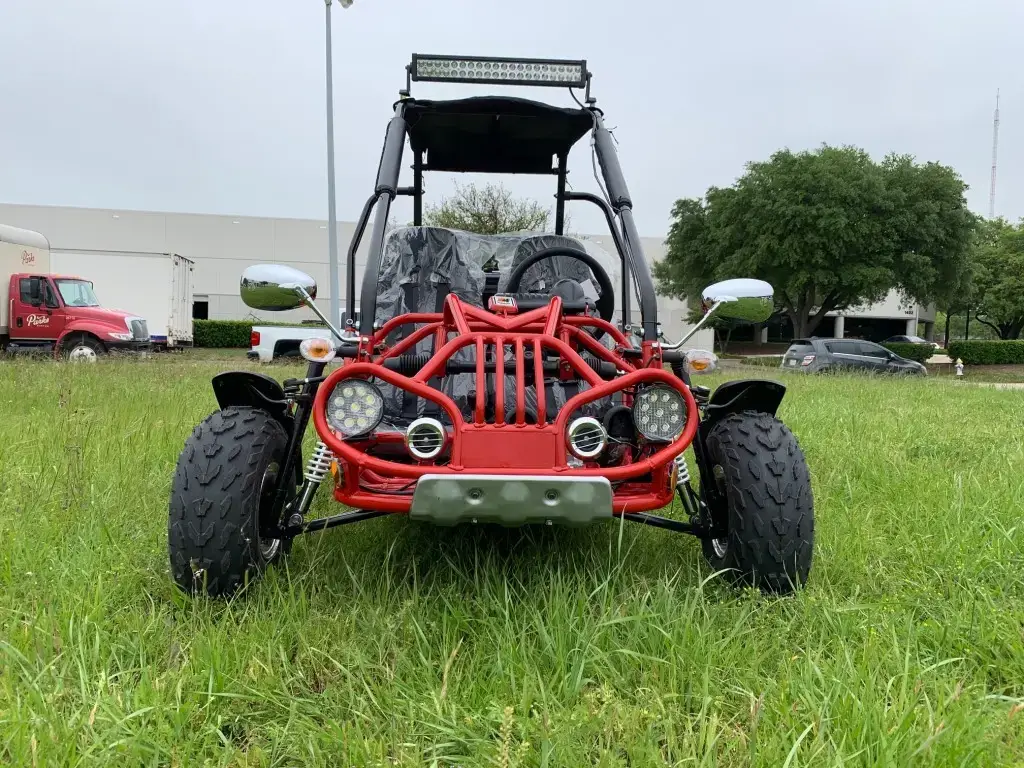

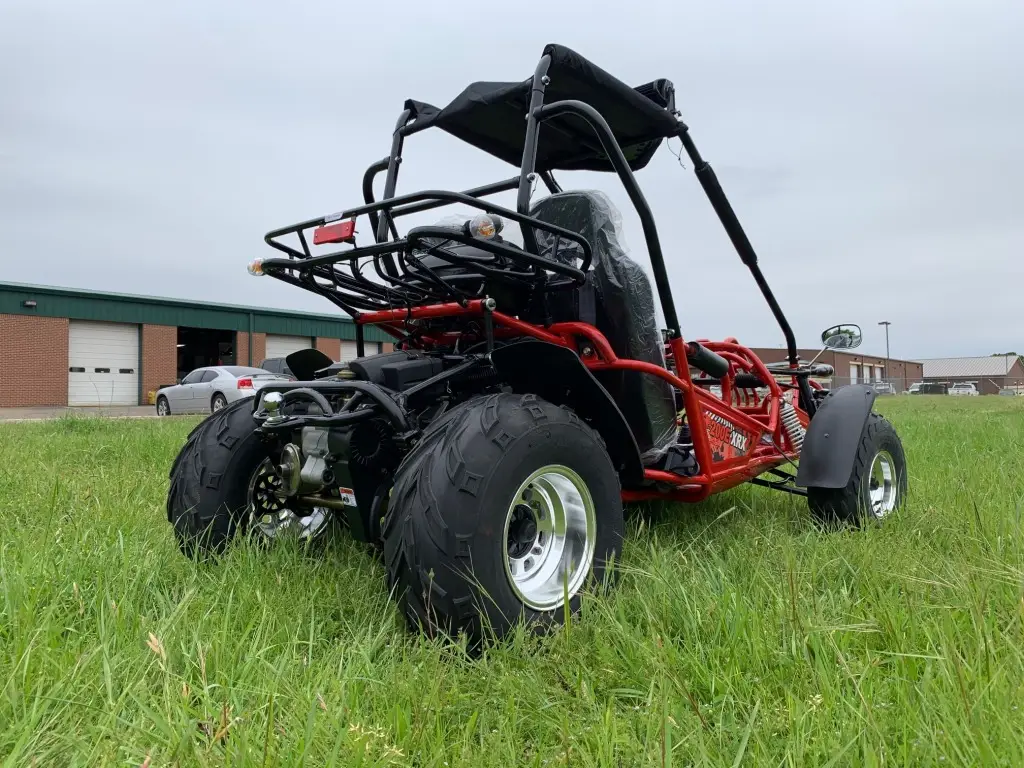

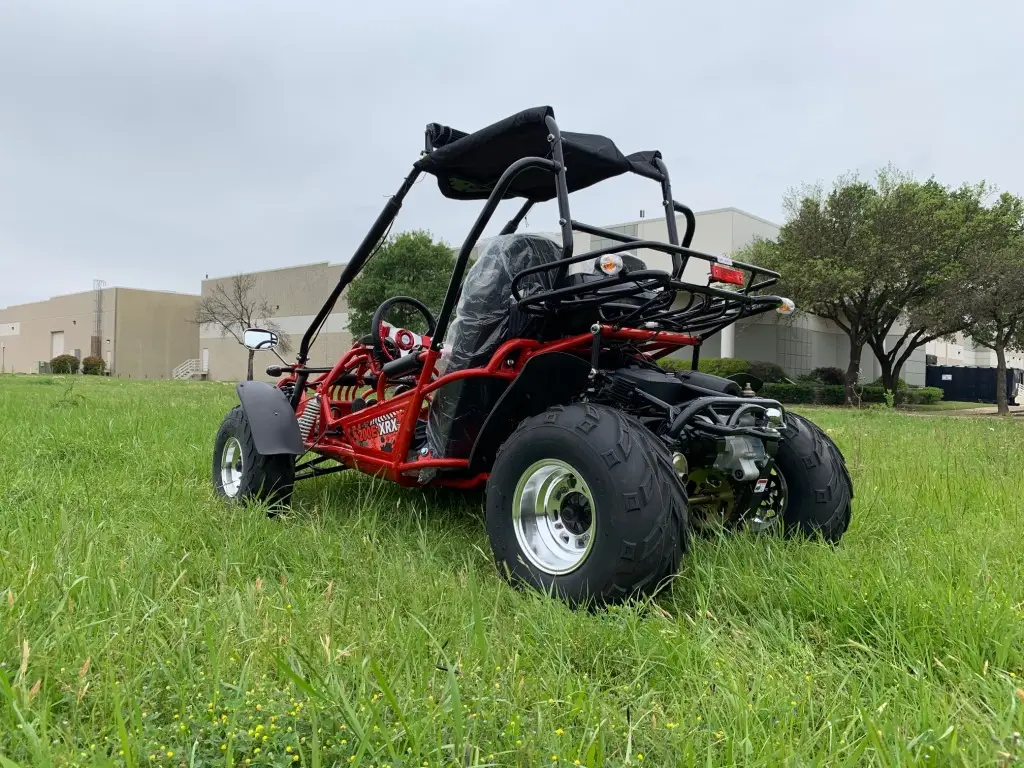

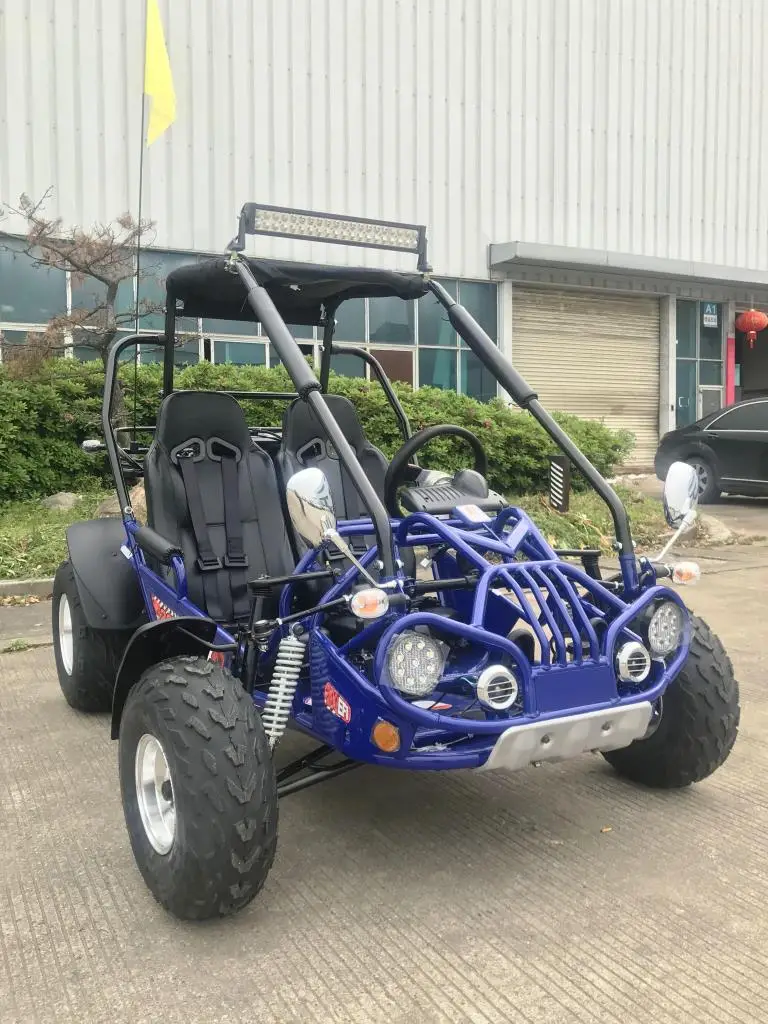

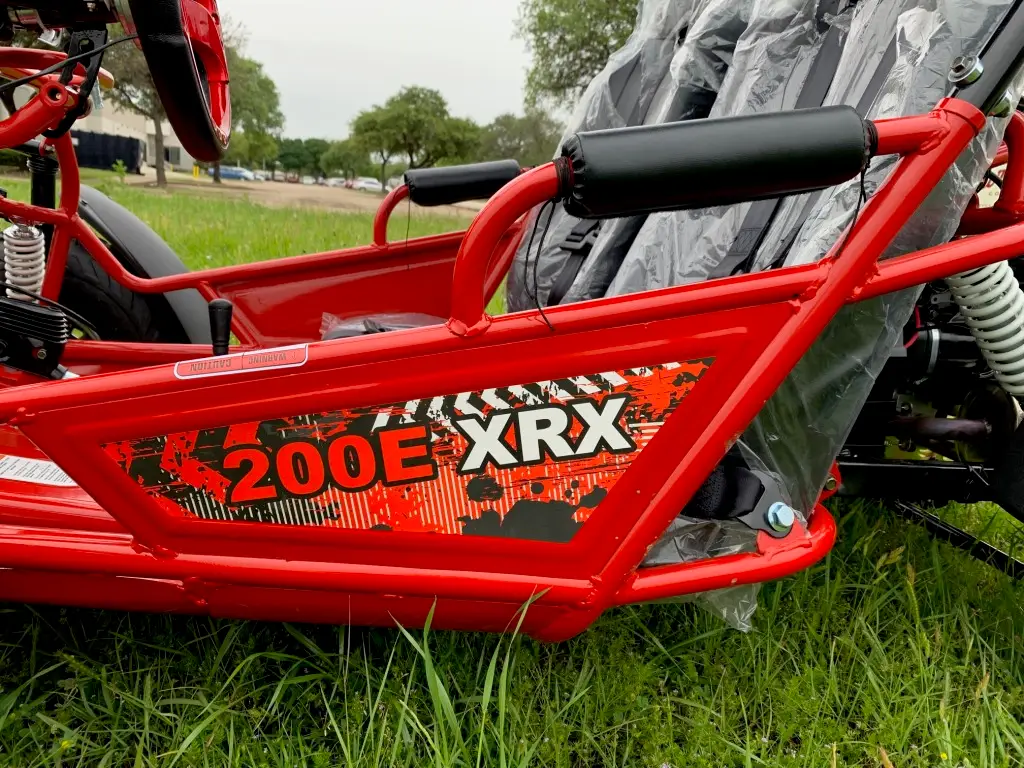

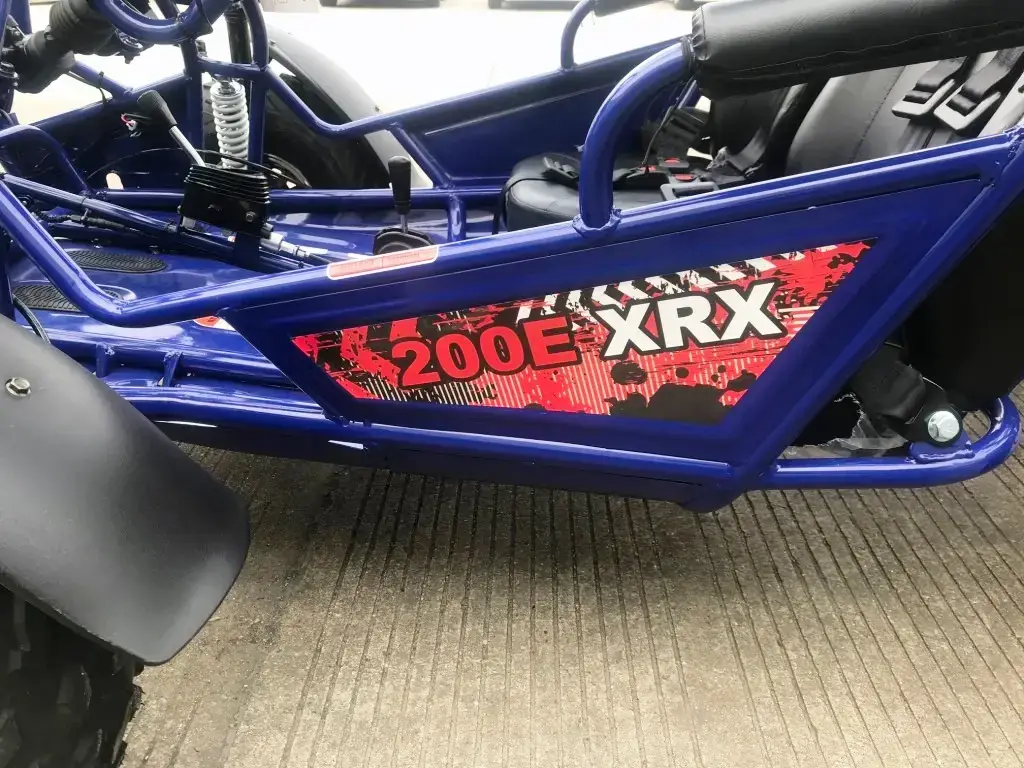

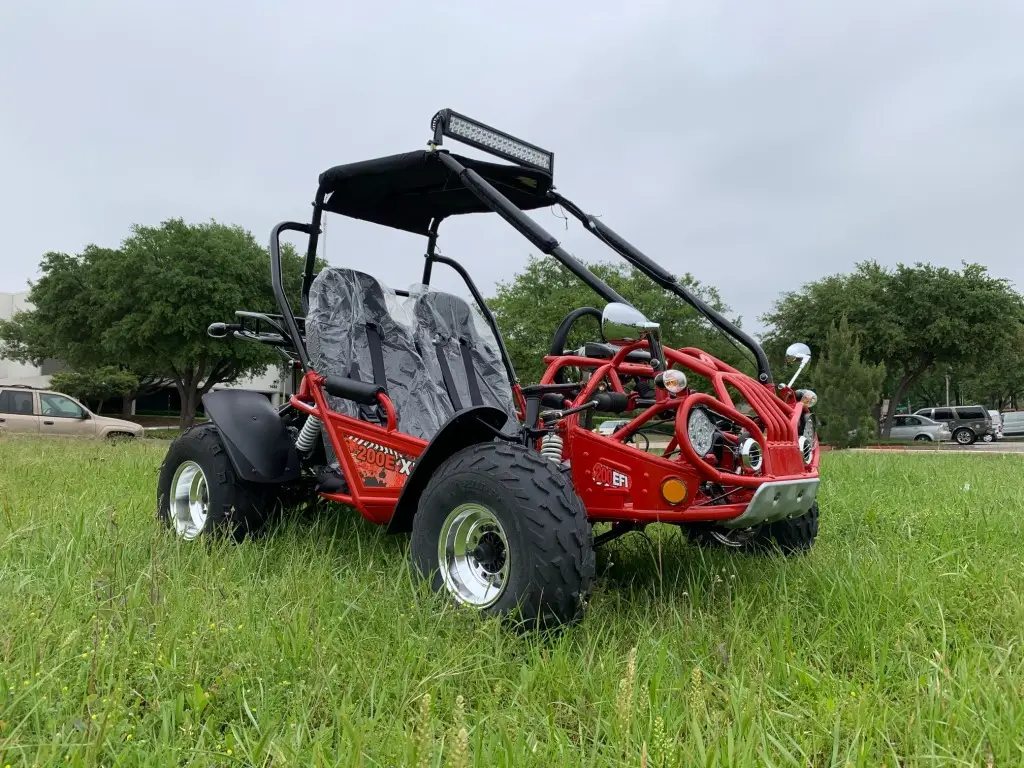

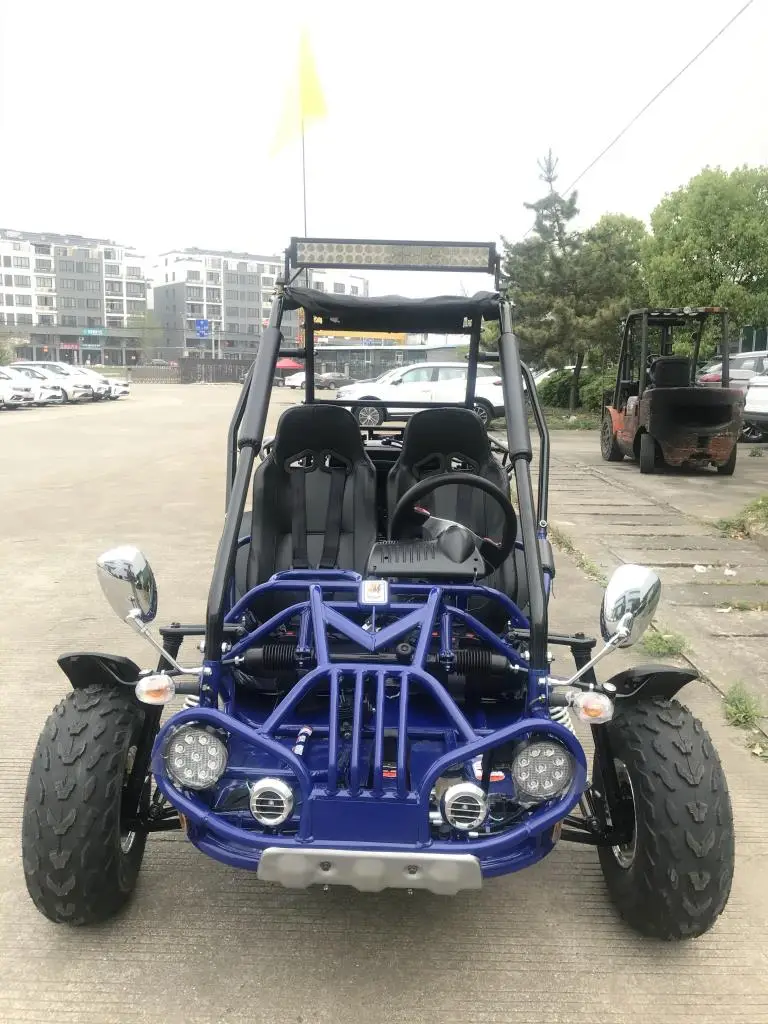

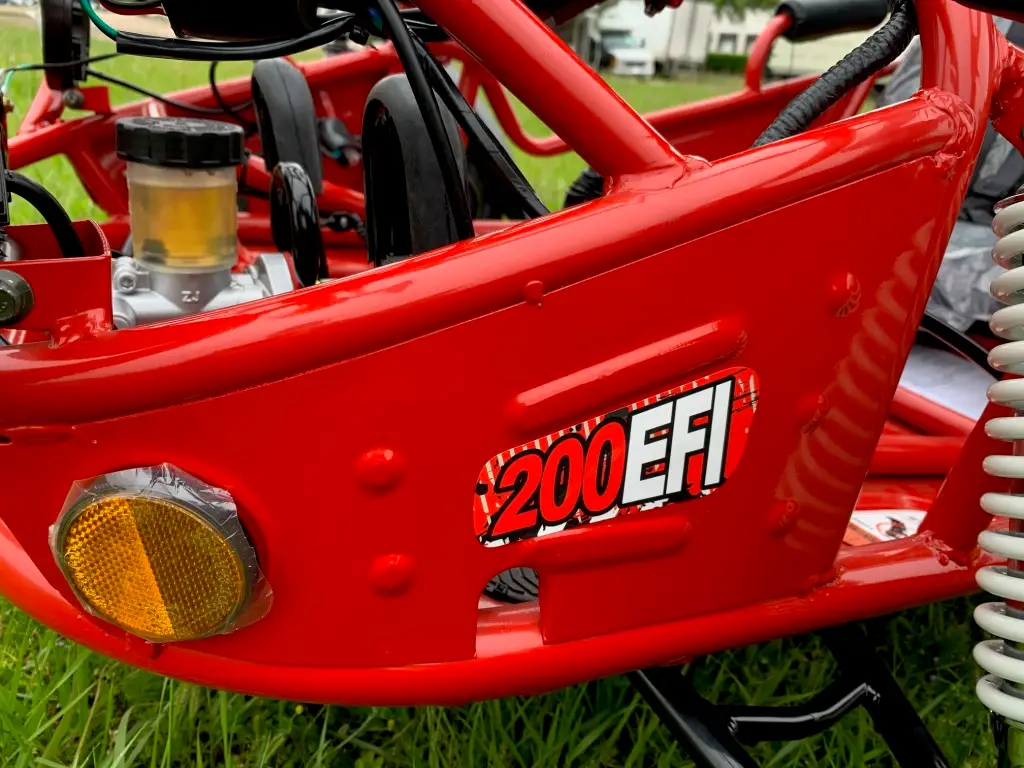

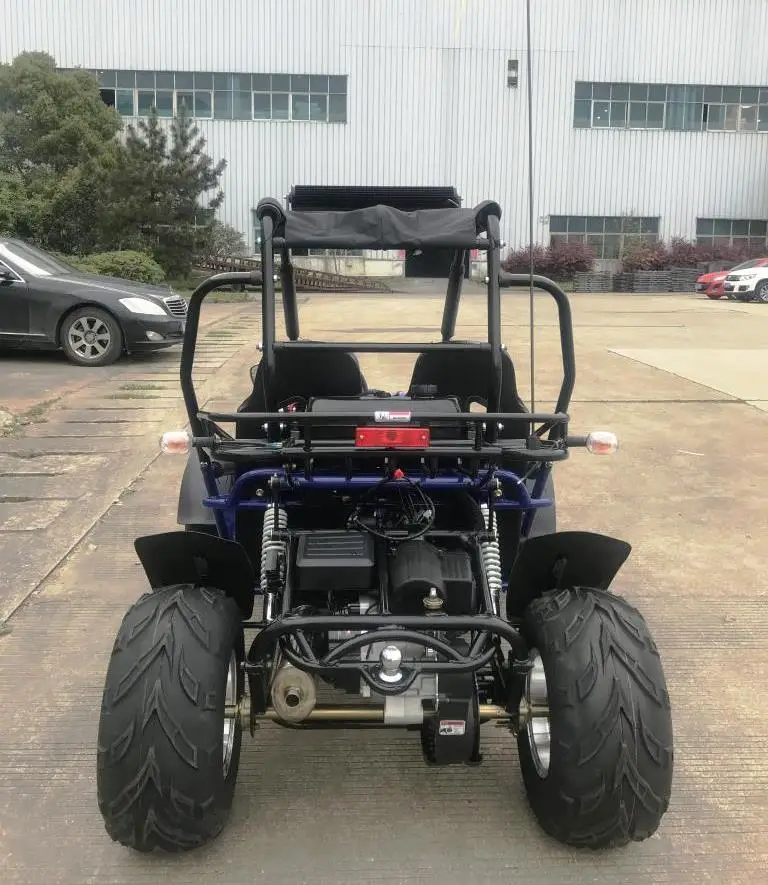

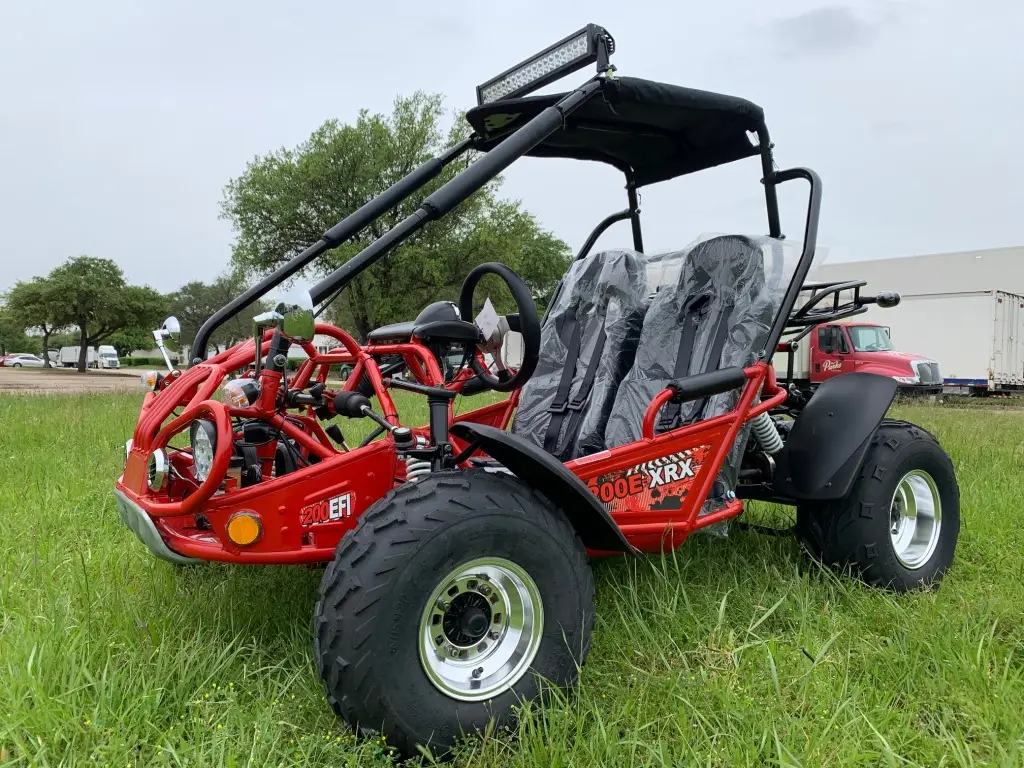

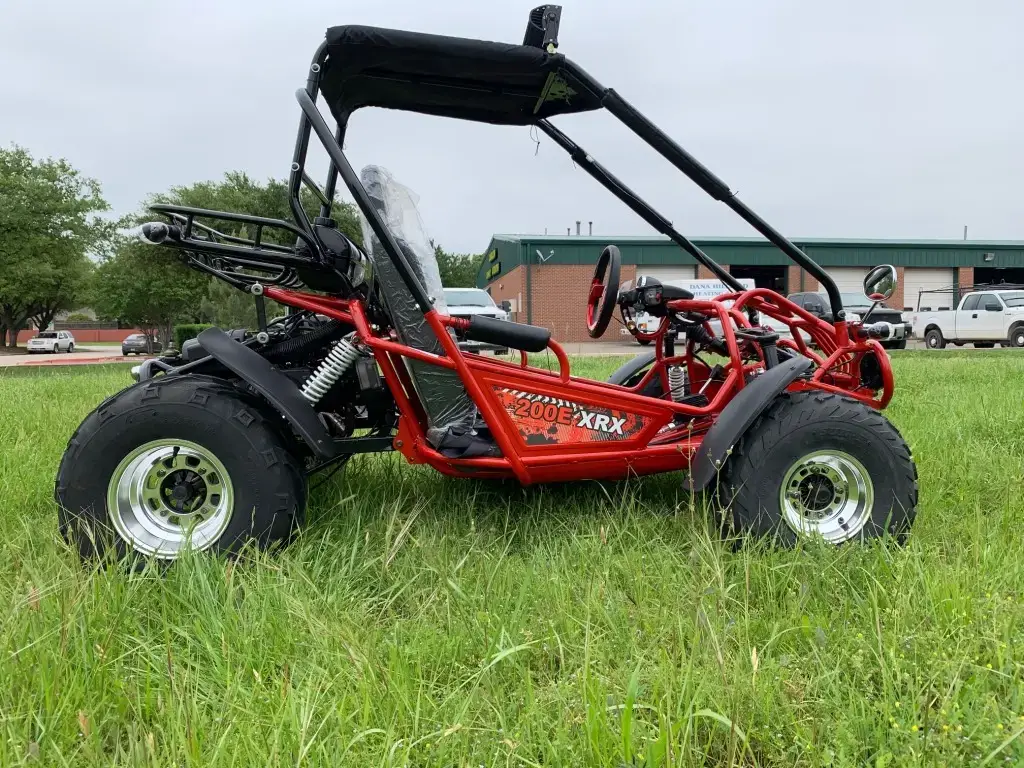

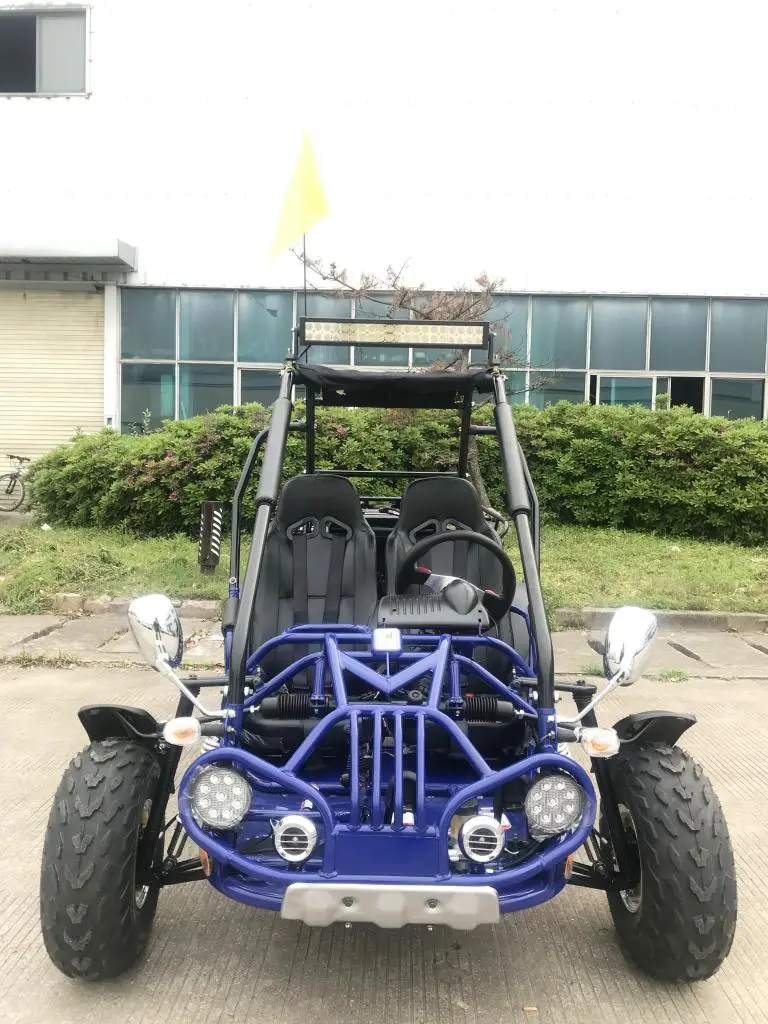

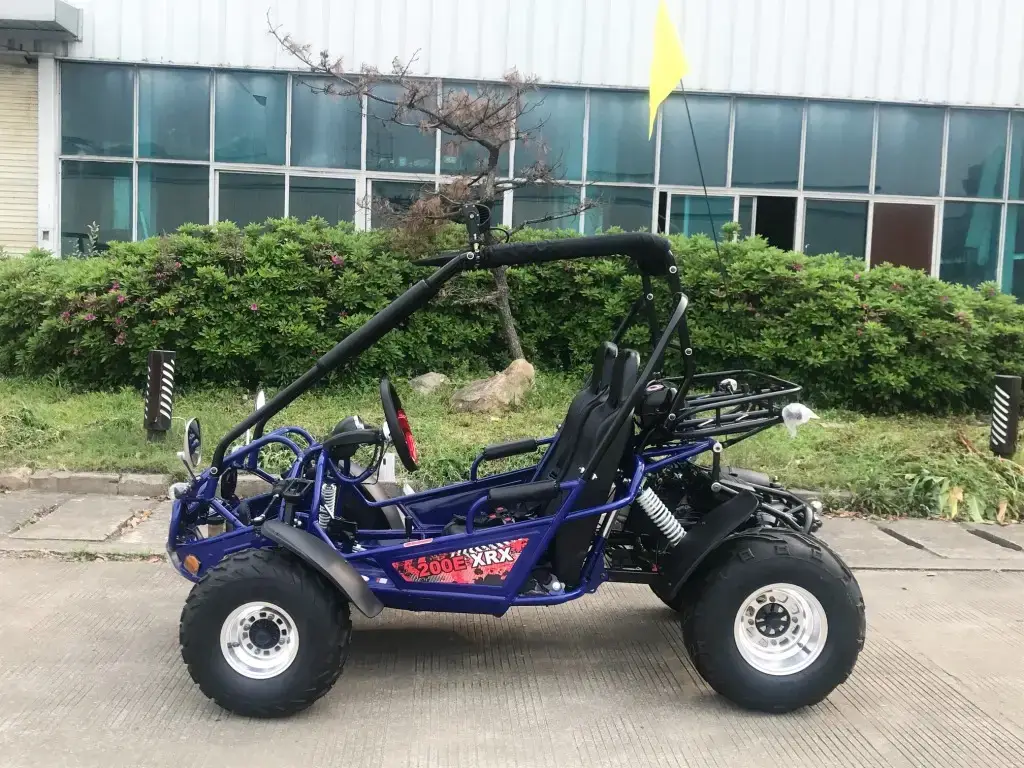

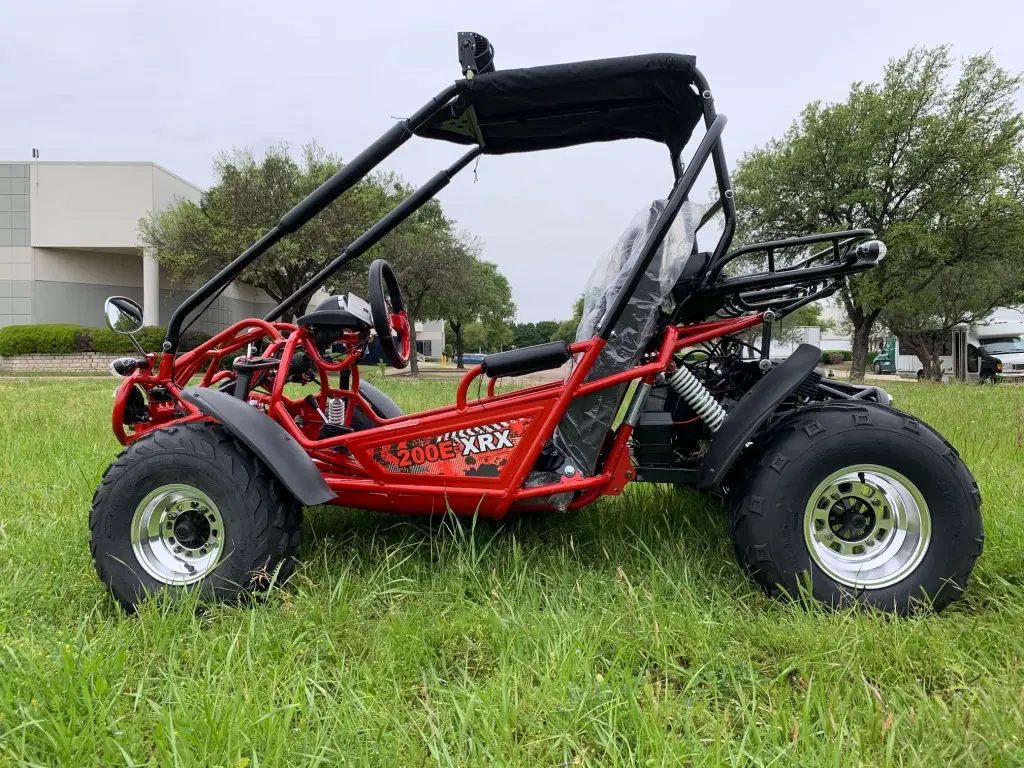

TrailMaster year 2021 200E XRX (EFI)

TrailMaster year 2021 200E XRX (EFI)

$4,500.00

-

The TrailMaster 200E XRX is an upgrade from our popular 150XRX, now with a bigger 169cc GY6 engine equipped with EFI. With fuel injection, users don’t need to worry about starting in cold weather or at high altitudes;  Furthermore, users don’t need to fix or replace carburetors after periods of inactivity with the unit.

Clear
SKU: N/A Category:

Specifications

Fuel injection system operates under any weather and at any altitude

Fully automatic with reverse, high performance 11 HP 168.9cc GY6 engine with internal F-N-R

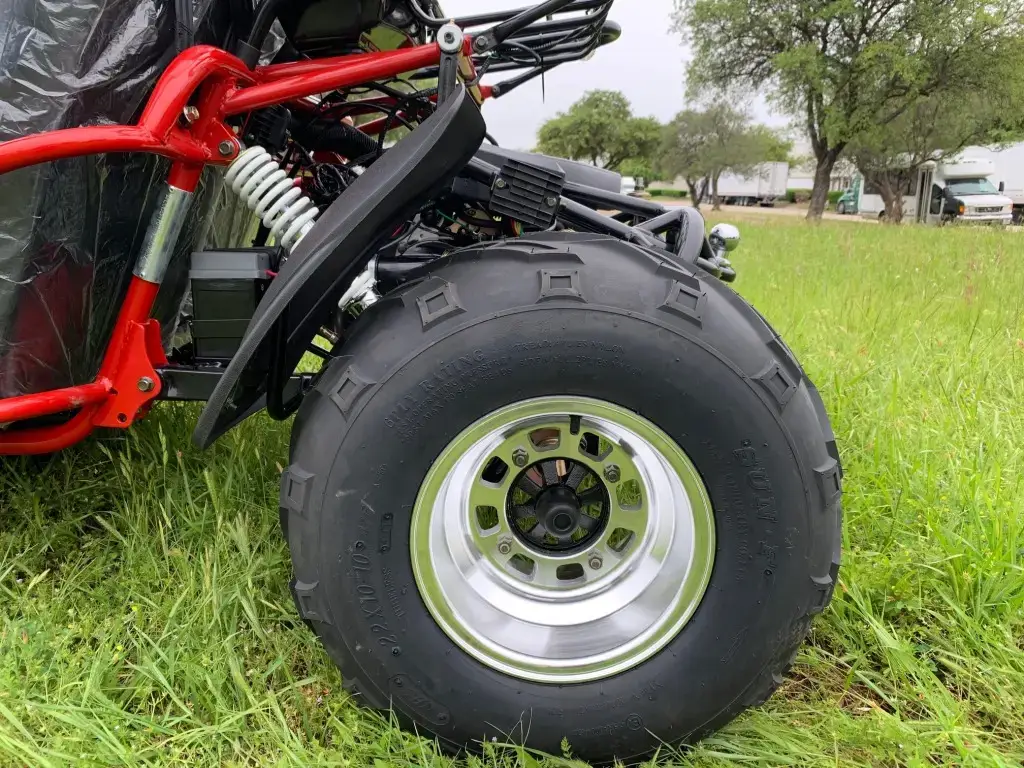

Alloy wheels with 22X7-10 front and 22X10-10 rear aggressive tires

Top speed over 40M/H

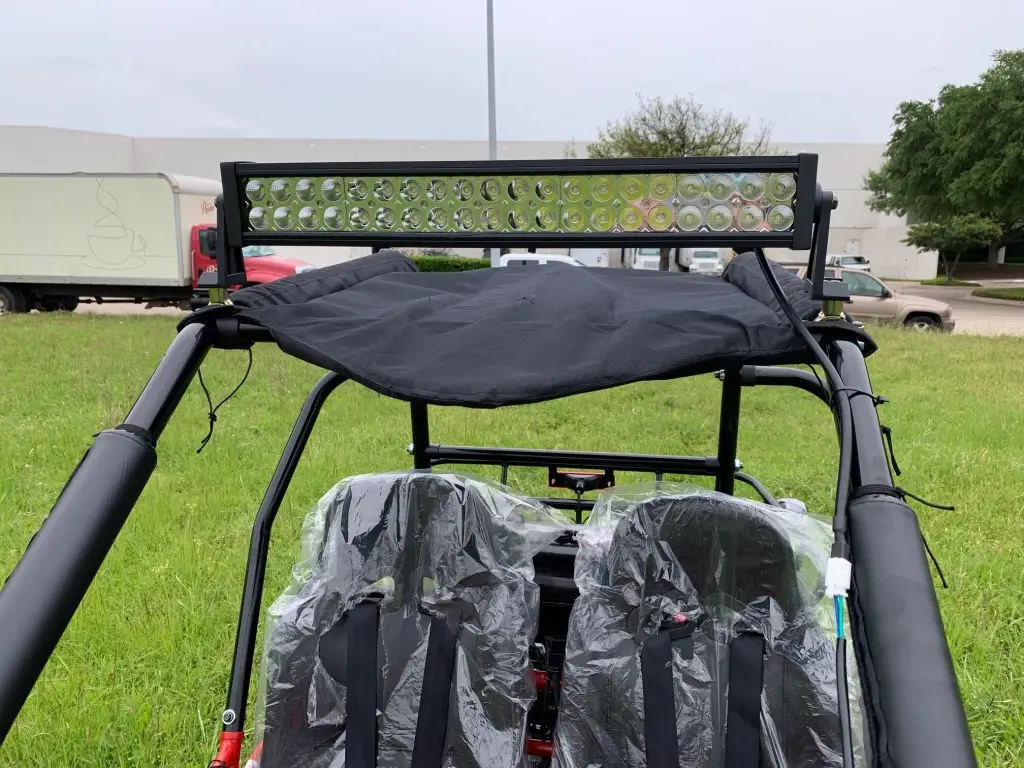

Top LED light bar

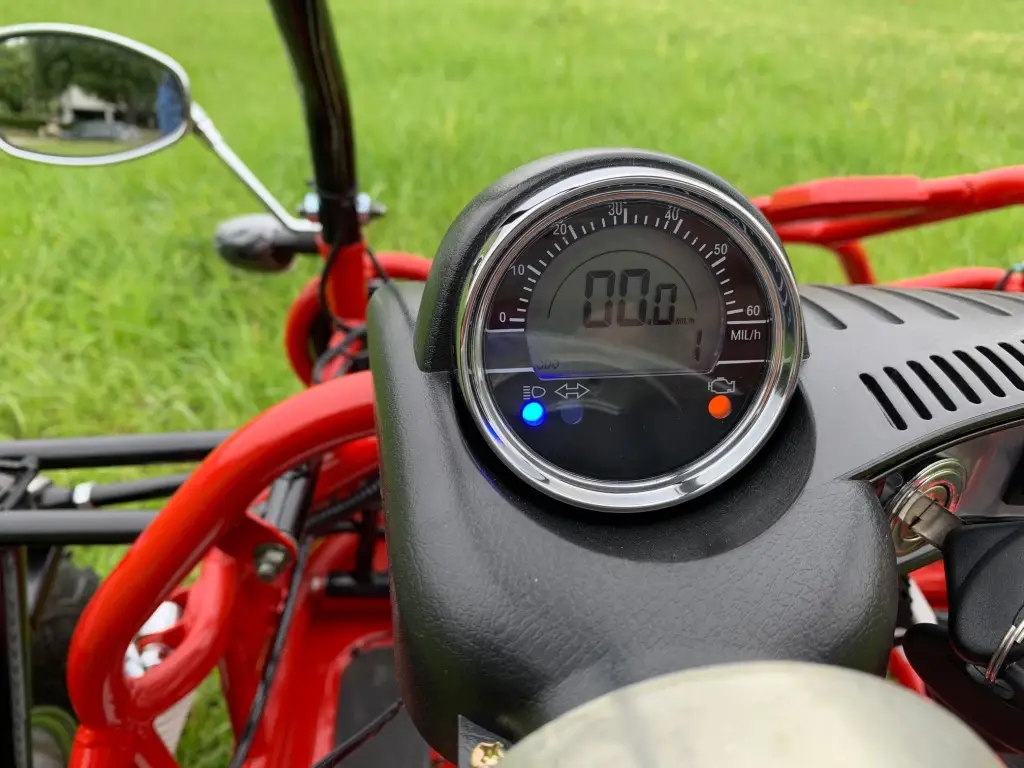

Digital speedometer/odometer

Aluminum side mirrors

Turn signals

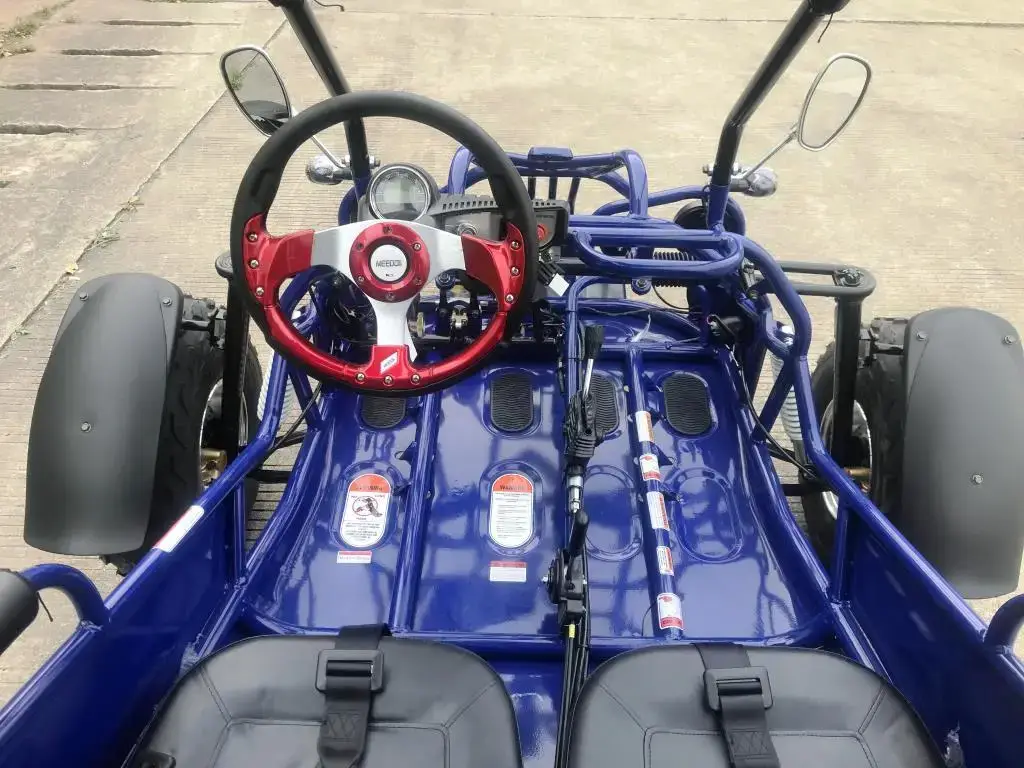

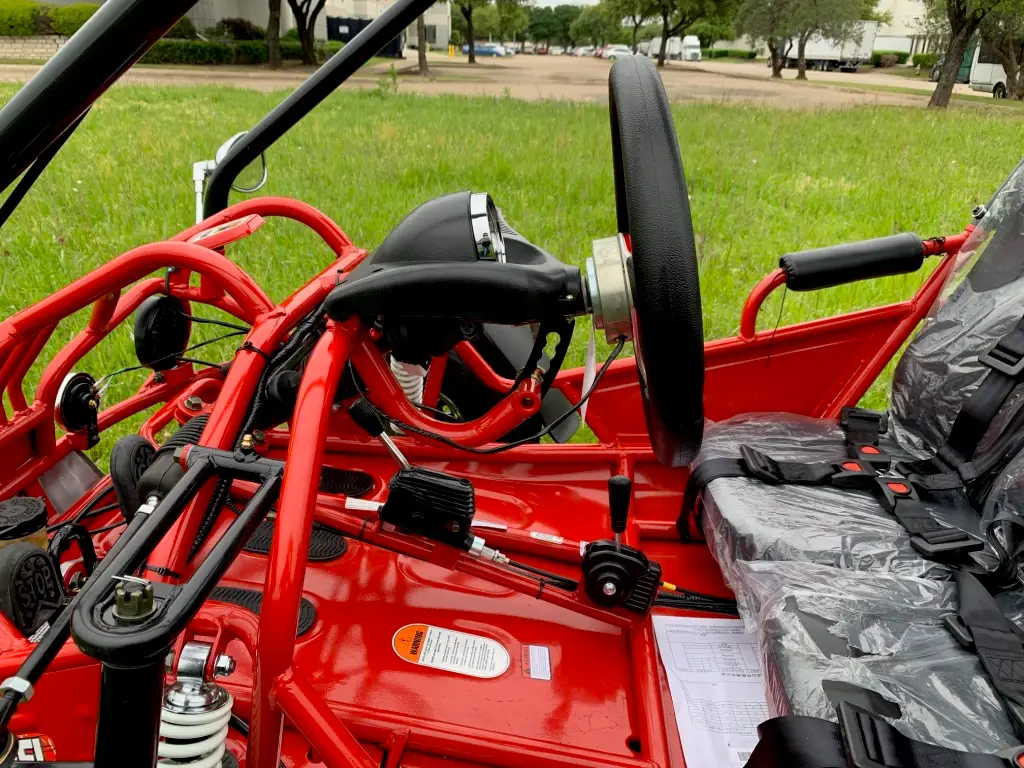

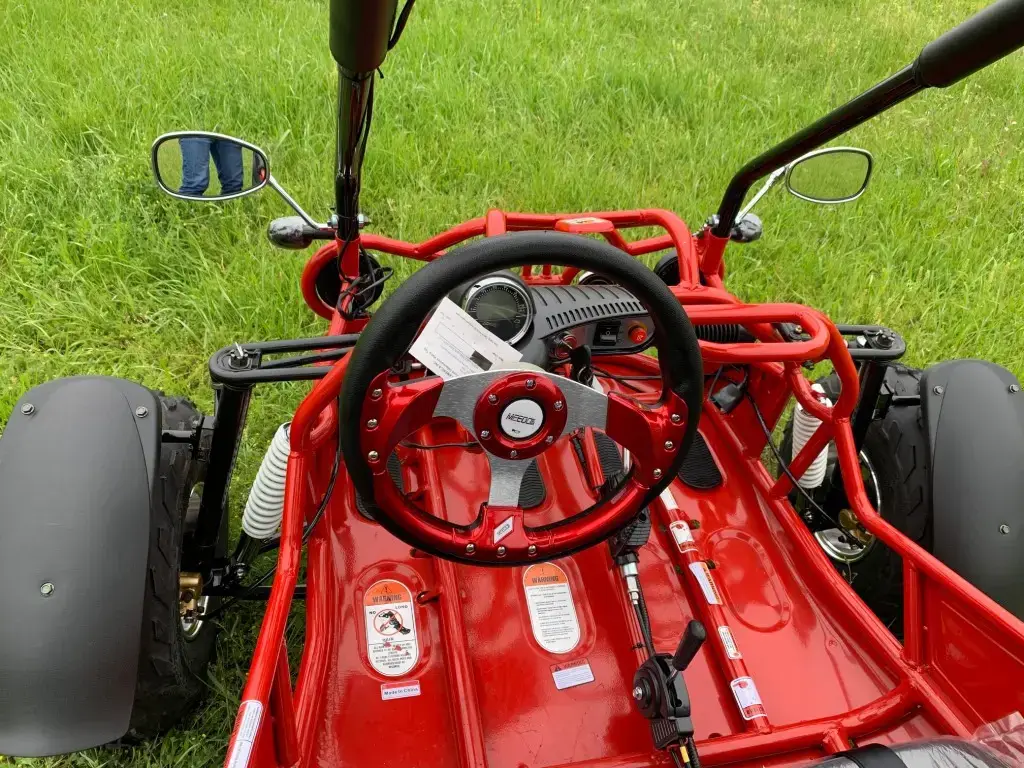

Sporting steering wheel

Electric start with kill switch

Adjustable steering wheel

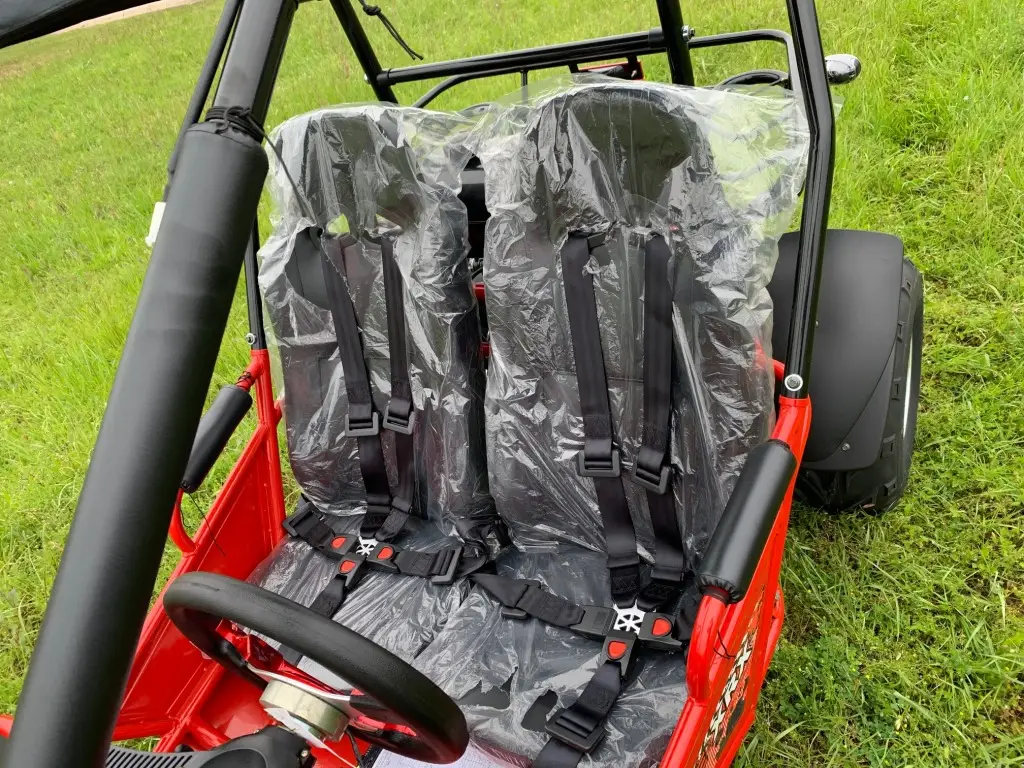

Individual sports seats

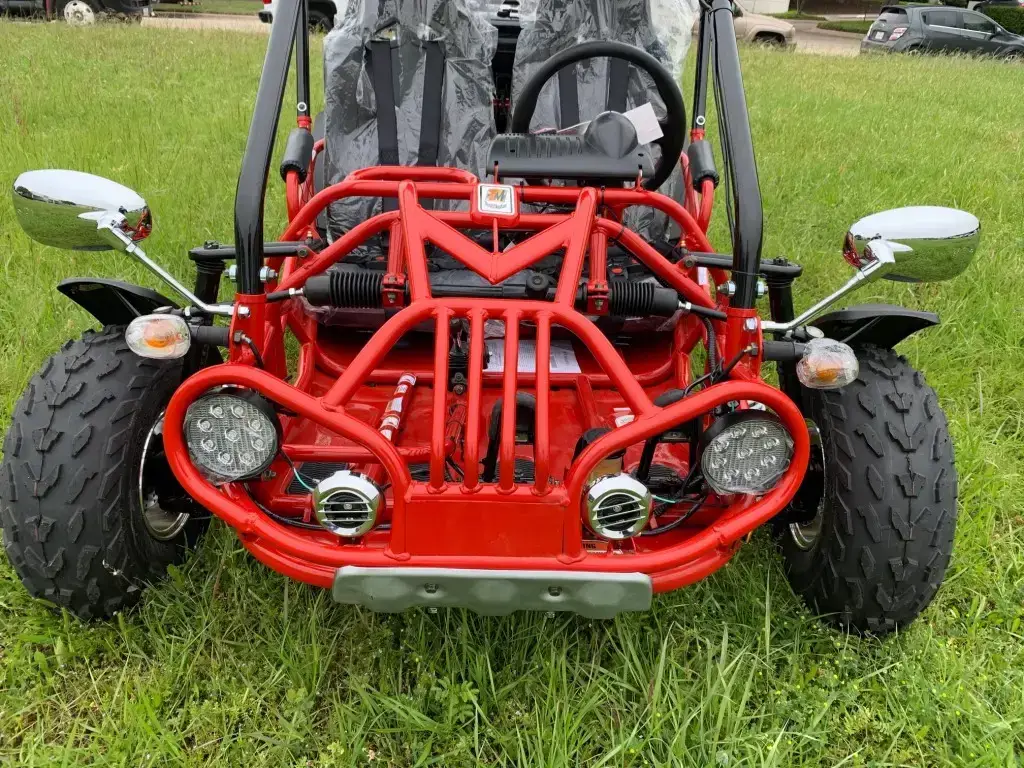

LED headlight

Bikini sunshade top

Adjustable driver seat: pedal to seat back adjustable from 36” to 43”

Rack and pinion steering

Front and rear hydraulic disc brake

4-point rear swing arm

Parking brake

4-wheel stylish fenders

Trailer hitch

Large rear utility rack

Large gas tank



Specification is as following:



Engine Information

EPA certificated

Engine type: 4-stroke, single cylinder, air cooled

Displacement: 168.9cc

Max HP: 11.1hp/8000rpm

Max torque: 8.1 lb ft/6000rpm

Bore x stroke: 2.4×2.28 inches

Max speed: 43 mph

Climbing ability: 18 degrees

Ignition: ECU

Starting system: Electric

Battery: 12V 10Ah

Engine oil: SAE 15W-40



General Information

Clutch: Automatic CTV with reverse

Driveline / Driving wheel: Chain / Dual wheel drive

Suspension F / R: Double A-arm / swing-arm

Brakes, F / R: Both hydraulic brakes, Disc

Tires, F / R: 22×7-10 / 22×10-10

Wheel: Aluminum

Fuel capacity: 2.25 gal

Shipping Weight/ Net Weight: 661 / 533 lbs

Max load: 500 lbs



Dimension Information

Wheelbase: 61 inches

OA L x W x H: 85×53.1×57.5 inches

Crate size: 88X48X25 inches

Height to seat: 13.8 inches

Min ground clearance: 6.7 inches

Pedal to seat back distance: 36” to 43”
